California Bearing Ratio Testing

California Bearing Ratio (CBR) Testing:

The California Bearing Ratio (CBR) is a penetration test used to evaluate the strength of subgrade soil for road and pavement design. It measures the resistance of the soil to penetration by a standard piston, and the result is used to determine the soil’s load-bearing capacity.

Purpose of CBR Test:

The primary purpose of the CBR test is to assess the suitability of the soil or aggregate material for use as a base material for pavements. It helps in the design of flexible pavements by determining the strength of the soil and its ability to withstand traffic loads.

CBR Test Procedure:

The procedure for conducting the California Bearing Ratio (CBR) test typically involves the following steps:

• Preparation of the soil sample: The soil is compacted into a cylindrical mold at a specified moisture content and density.

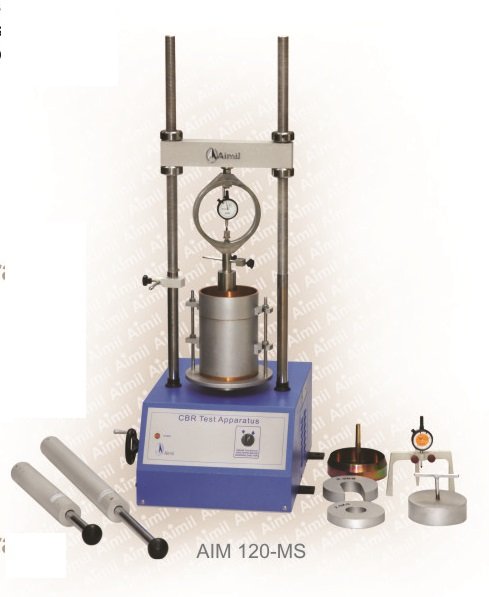

• Penetration test: A standard piston is used to penetrate the compacted soil at a constant rate, typically 1.27 mm per minute.
• Measurement: The resistance to penetration is recorded at specified intervals, typically every 2.5 mm of penetration.
• Calculation: The CBR value is calculated by comparing the pressure required to penetrate the soil with the pressure required for penetration of a standard material (crushed stone). The formula is:

CBR = (Test Pressure / Standard Pressure) × 100

CBR Test Results:

The CBR value is expressed as a percentage, and higher values indicate stronger soil. Typical CBR values for different materials are:

• Excellent subgrade soil: CBR > 20%
• Good subgrade soil: CBR = 10-20%
• Poor subgrade soil: CBR < 10%

Significance of CBR Value:

Higher CBR values are indicative of soil or material with higher strength, which means less pavement thickness is required. A lower CBR value indicates weaker soil, requiring thicker pavement to support traffic loads and ensure durability.

Applications of CBR Test:

The CBR test is widely used in the design of:

• Flexible Pavements
• Roads and Highways
• Airport Runways
• Railways

Test Method:

IS: 2720 (Part 16) – 1987 provides the standard guidelines for the CBR test procedure in India.
