Bitumen Testing:

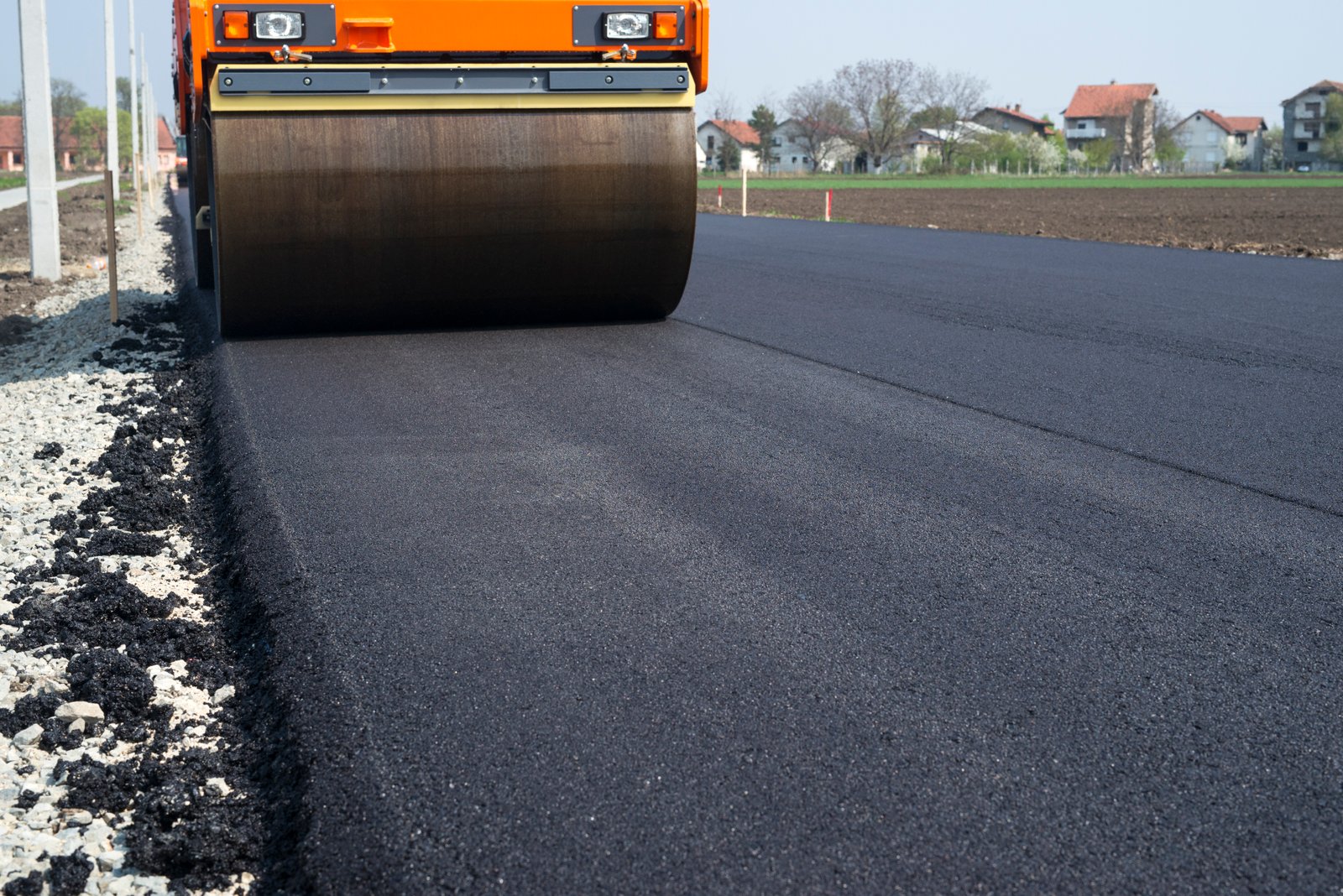

Bitumen is a crucial binding material used in road construction and waterproofing. Testing of bitumen ensures it meets performance specifications and behaves reliably under varying temperatures and loads. The tests evaluate its viscosity, strength, ductility, and other physical characteristics to determine its suitability for pavement design.

Purpose of Bitumen Testing:

The main goal of bitumen testing is to confirm that the material adheres to standards like IS: 73, IS: 1201–1220 series, and ASTM standards. These tests ensure the bitumen can withstand traffic loads, climate conditions, and aging, providing long-lasting and safe roads.

Common Tests Conducted on Bitumen:

• Penetration Test: Measures the hardness or softness of bitumen by the depth a standard needle penetrates under specific conditions. (IS: 1203)
• Softening Point Test: Determines the temperature at which bitumen softens under heat. Indicates suitability in warm climates. (IS: 1205)
• Ductility Test: Assesses the ability of bitumen to stretch without breaking, important for temperature fluctuations. (IS: 1208)
• Absolute Viscosity: Measures resistance to flow at 60°C using a vacuum capillary viscometer. Indicates consistency and workability. (IS: 1206 Part 2)
• Kinematic Viscosity: Determines flow behavior at 135°C using a glass capillary viscometer. (IS: 1206 Part 1)
• Loss on Heating: Evaluates the loss of volatile materials after heating. Helps estimate aging characteristics. (IS: 1212)
• Specific Gravity: Indicates bitumen density compared to water. Useful for mix design and volume calculations. (IS: 1202)
• Binder Content: Determines the percentage of binder in bituminous mix, crucial for proper adhesion and durability.
• Density: Important for determining the weight of bitumen mix per unit volume.
• Flow Test: Measures the deformation (flow) of bituminous specimen under load. Indicates resistance to rutting.
• Marshall Stability: Evaluates the strength and stability of bituminous mixtures under loading conditions. (ASTM D6927 / IS: 1201–1220 series)

Importance of Bitumen Testing:

• Ensures high performance and safety of road pavements.
• Helps select the right bitumen grade for different climates and traffic conditions.
• Improves pavement life and reduces maintenance costs.
• Verifies compliance with government specifications and tender requirements.

Applicable Standards:

• IS: 73 – Paving Bitumen Specification
• IS: 1201–1220 – Methods for Testing Tar and Bitumen
• ASTM D946 / D4402 / D6927 – Various international methods for bitumen and mix testing
